Indicator Unit Type 277

This unit was part of the H2S Mk4A airborne radar system and was the local monitor used
for setting up the receiver in the aircraft.

The A-scan (horizontal trace) timebase, of 8-mile rang, showed received signals and markers as vertical deflections of the trace.

Sec/Ref: 10QB/6429

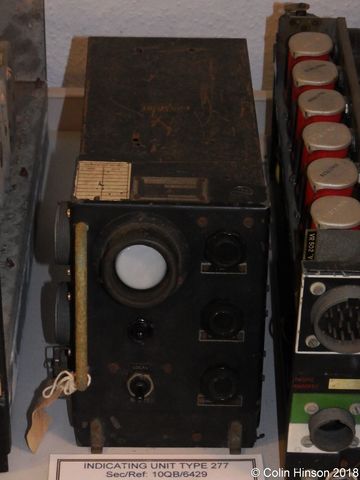

Indicator Unit Type 277 (Photograph Number 0136)
